DVRPC-U8SLE series
Features
The DVRPC-U8SLE series is a convenient portable DVD drive allow you to do Software install and data writing on a mini note PC.
Compact sized like a CD case, plus the cable storing mechanism new design, it really helps in carrying and storing.
Available in White and Black 2 colours for the line-up, match your current PC, choose the color you like to go with.
Optimal New Design for mini note PC
It is so compact, but still equipped with cable storing mechanism new design, carry it with your mini note PC together and go around places to places. In addition to software installation, using the included writing software you can even write data to DVD or CD.
Cable Storing Design
USB cable can be store behind its body make it a neat and clean storing, convenient to carry.
Slim body
Thickness of only 20mm slim body. Thin & light weight, therefore it is great to carry with the mini notebook PC.
AC Adaptor not Needed! Drive by Bus Power!
This product can be use by just connecting the PC with USB cable. Since it uses the USB Bus Power to operate, such as AC adaptor or any kind of external power are not needed.
Use it for Software Installation or Recovery
Those mini notebook PC does not come with DVD or CD drive by just connecting it, software contents that are on CD or DVD can now make the installation became possible.

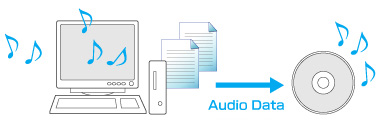

Simple operation easy to use with Data Writing Software
includedData Writing Software「Nero Express Essentials」, Data writing to DVD or CD, Audio CD creation can be done with simple operation. Even for those who are new to data burning, may use it without worrying.
such as「Data disk writing」or「Audio CD writing」, just choose the task you want to do and launch the「Nero Express Essentials」, easy to understand procedure guide with the Launch Software「Nero StartSmart Essentials」also included ！
Simple to save into DVD with Packet Writing Software

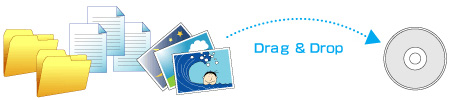

Like the USB memory, use drag & drop easy operation to save data into DVD with the included 「InCD Essentials」. Great for frequent backup tasks.
※Suggested to use with DVD±RW/-RAM､CD-RW
Specifications
| Type | Portable external | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power | Rated voltageDC5V Power supply from USB port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | USB 2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Connector shape | USB (mini B type) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 137(W)×154(D)×20(H)mm (protrusion part not included) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Placement condition | horizontal only/cannot be placed vertically | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net weight | Approx. 320g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tare weight(Includes packaging | Approx. 600g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disk Loading Type | Power eject/Manual insert type | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer Under Run error protection | DVD writing, CD writing both supported | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Reading speed/Writing speed |
※1 For burning,only the 12cm media is supported. When burning to a DVD or CD, each writing speed requires an appropriate supported media. ※2 DVD video created with DVD+R, DVD+RW, DVD-R, DVD-RW media can be playback on current DVD-ROM drive, DVD player, supported game console, but some models may not be able to playback. ※3 If multisession is being written on a Double layers DVD+R media, other drives can be able to read the first session only. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature range(℃) | 5～35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity range(％) | 20～80 (but no condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Notes |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty period | 1year | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Approved standard | CE, FCC*, VCCI, BSMI, Rohs *s/n XYR0000001_001000, XYS0000001_001000 not supported. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supported OS
| Supported OS | Windows 7（32・64bit）／Windows Vista（32bit）／Windows XP／Windows 2000 Professional ※ When using or installing the included software, you must login with Administrator privileges. |
|---|
Compatible machine type
| Compatible machine type | IBM x86-based machine |
|---|---|
| Operating environment | Supported CPU： Pentium III 450MHz or higher Harddisk(※1)： 250MB above (for creating an imagefile a maximum of 8.5GB free disk space is required） Memory： 128MB above ※1 UltraATA/66 above or Serial ATA connection ※ Even the above requirements has been met, depends on circumstance it may not be able to burn at the selected writing speed. |
Included Accessories
| Included software | Nero company's「Nero Express Essentials」「InCD Essentials」 |
|---|---|
| Included Accessories | Setup guide, USB(A-miniB, approx. 13cm) cable |
